Linear Pneumatic Diaphragm Actuator

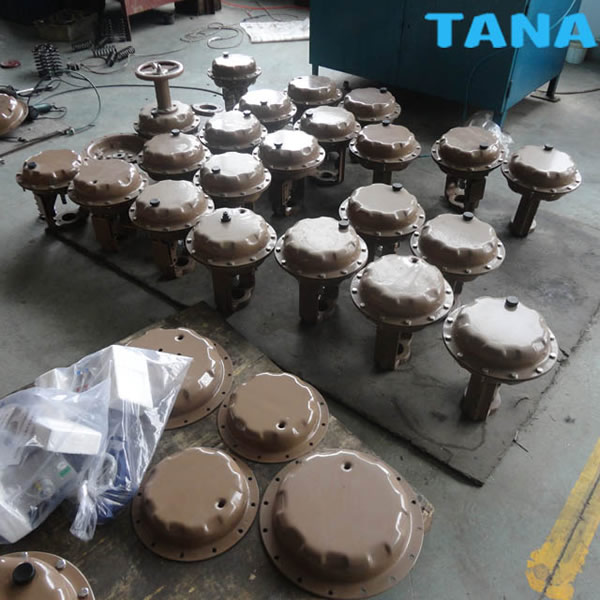

Pneumatic diaphragm actuator mechanism is the linear actuators mounted in the final adjustment components,equipped with multiple built-in springs,And the overall structure is compact,and the thrust is huge,It is particularly applicable to straight travel control valve.butterfly valve and damper regulator and so on of each series.
Contact Now

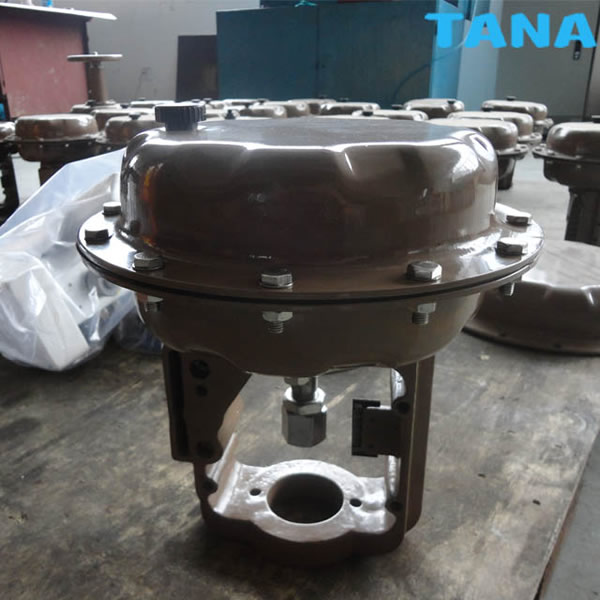

Linear Pneumatic Diaphragm Actuator

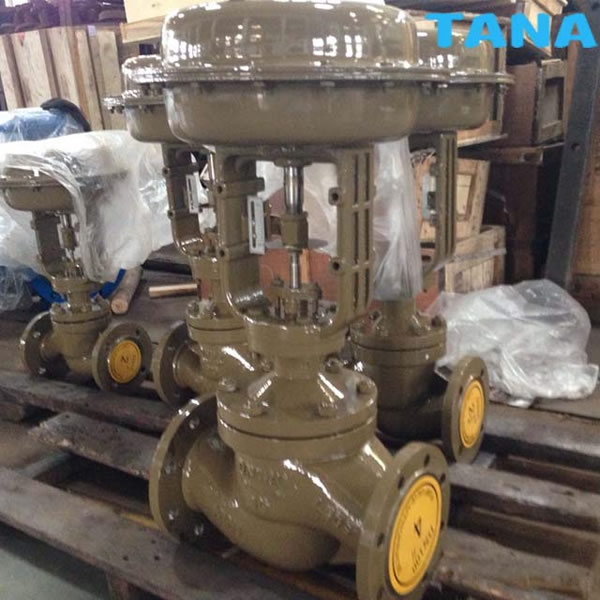

Linear Pneumatic Diaphragm Actuator globe type pneumatic diaphragm control valve pneumatic diaphragm control valve Globe type control valve 2 way diaphragm control valve


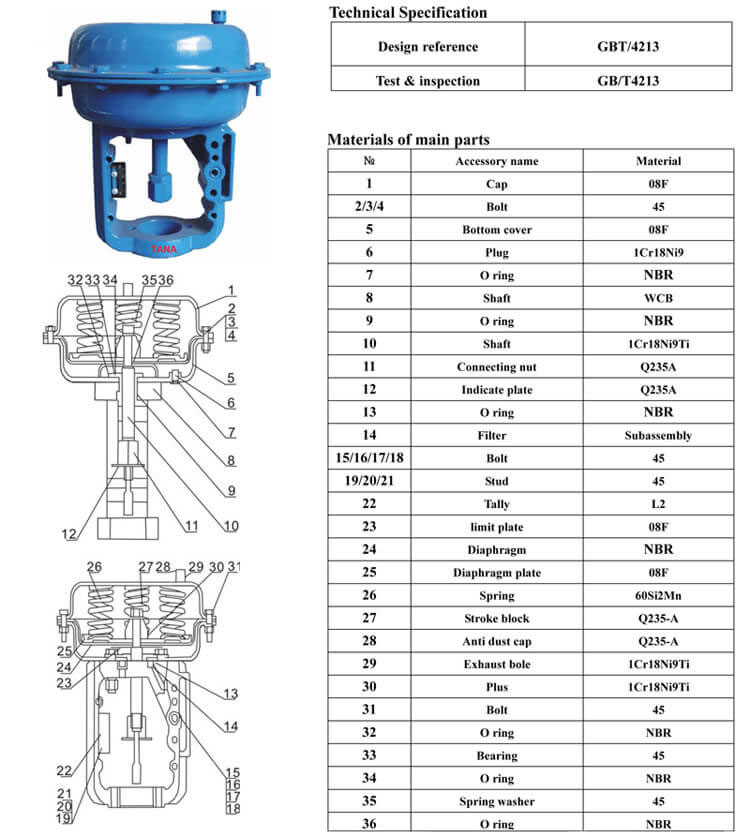

  • The compact overall structure
  • Rapid act,huge thrust,little friction

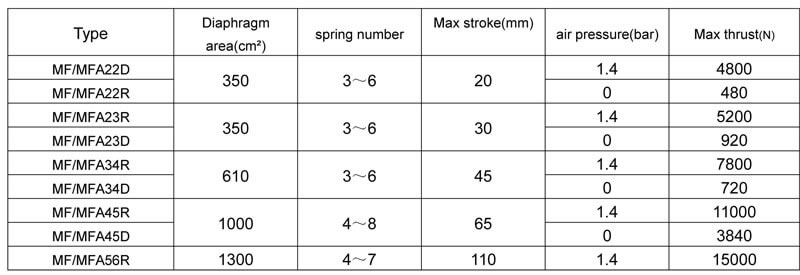

  • The effective area of 280~1600 cm2 can be chosen.
  • The gas source range(spring range)of 0.14~0.34 Mpa can be selected.

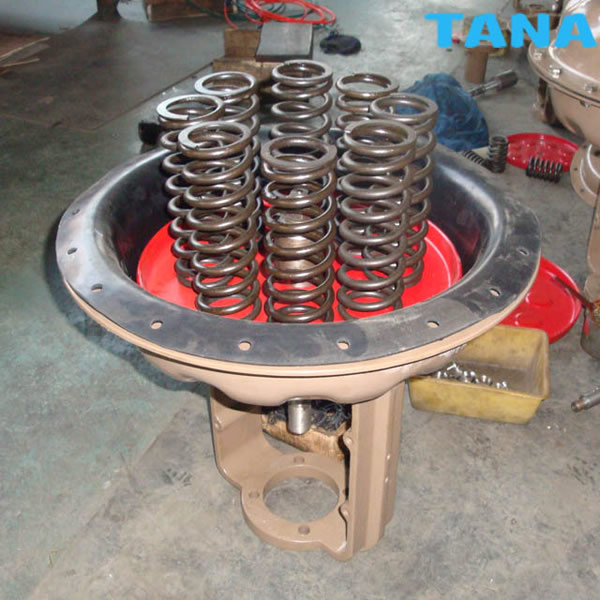

  • The built-in spring is replaced to change the scope of work of the gas source.
  • The standard film cover is the plastic coated steel plate,or the optional can be stainless steel
  • The stem can be connected by screw clamping.

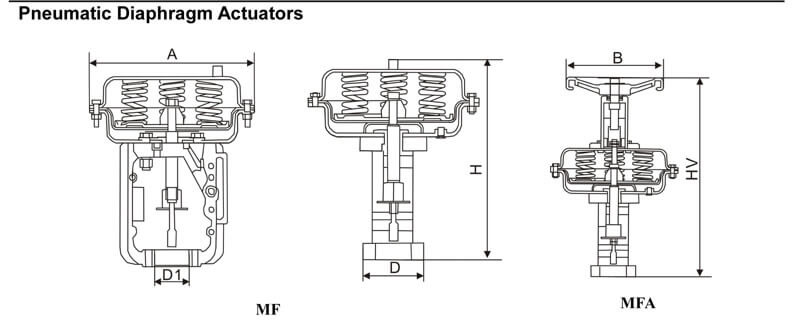

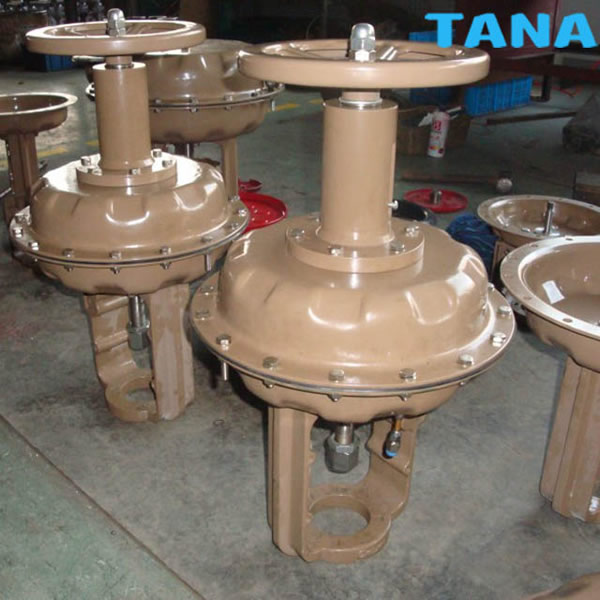

  • The clear hand wheel mechanism can be chose,choosing the maximum and minimum travel mechanical limit.
  • The maximum supply pressure is 0.6Mpa,and it can continuously work under the temperature of -40~120.


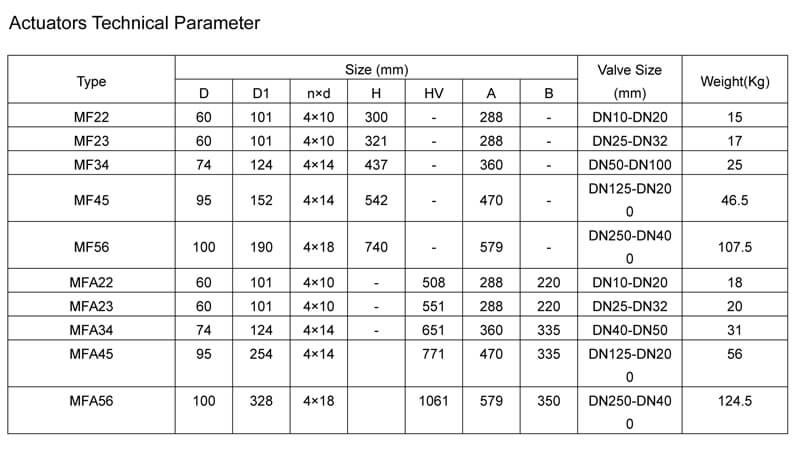

Storke: 16mm-120mm

Flange end:ISO5211 DIN337 or MFG

Air pressure:0.2Bar-5Bar

Work temperature :Normal temperature type:-20℃-80℃High temperature type:-20℃-160℃Low temperature type:-40℃-80℃

Please specify the following when order:

  1. Actuator model(specification type of action quantity of spring )
  2. Air supply
  3. Travel/stroke
  4. With/without hand wheel (top mounted)
  5. Accessories (with/without positioner, air regulater)
  6. Special requirement
