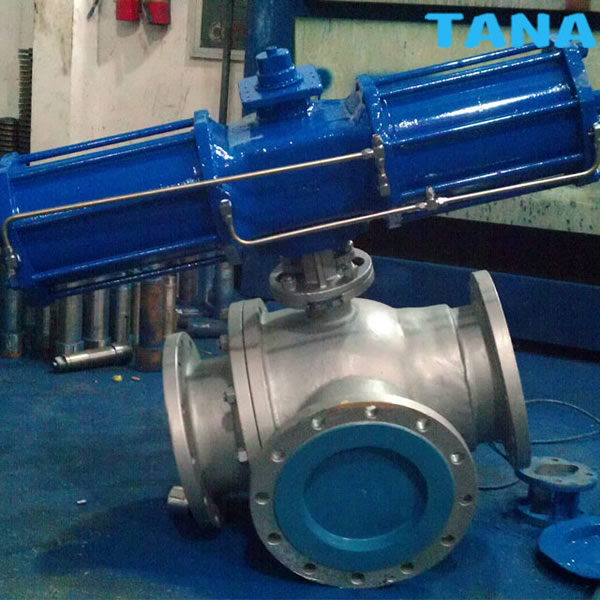

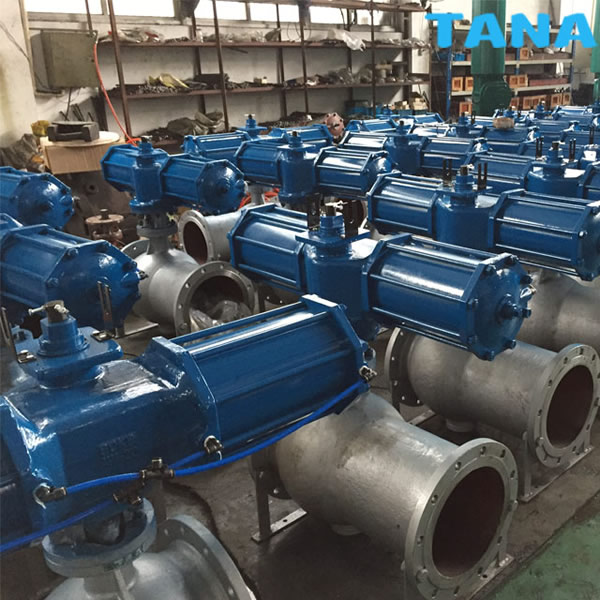

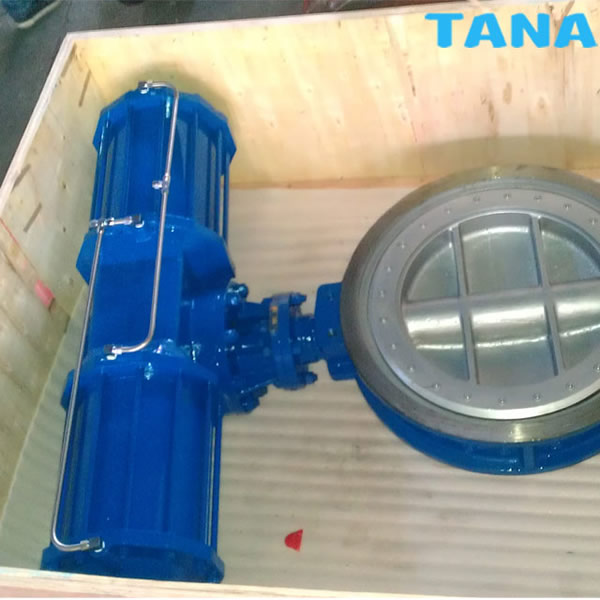

AW Series Scotch Yoke Pneumatic Actuator

AW pneumatic actuator is divided into double-acting and single acting (spring reset), two divided cylinder, easy to manufacture large size block, large output torque, flexible motion smoothly; Cylinder wall and piston shaft hard chrome plating, have very good abrasion resistance; All sliding parts with oil free between shaft and guide ring to reduce friction coefficient, prolong service life, u-shaped curve characteristics of AW pneumatic actuator output torque is more suitable for large diameter ball valve, butterfly valve.
Contact Now
AW Series Scotch Yoke Pneumatic Actuator
AW Series Scotch Yoke Pneumatic Actuator
scotch yoke pneumatic actuator
AW series pneumatic actuator
aw scotch yoke double acting pneumatic actuator
12v linear actuator
scotch yoke pneumatic actuator for control valves China

Features

  1. AW pneumatic actuator is divided into double-acting and single acting (spring reset), two divided cylinder, easy to manufacture large size block. Meet the needs of all kinds of large rotary type valves.
  2. the output torque, flexible motion smoothly; Cylinder wall and piston shaft hard chrome plating, has the very good abrasion resistance, all sliding parts with oil free between shaft and guide ring to reduce friction coefficient, prolong service life, u-shaped curve characteristics of AW pneumatic actuator output torque is more suitable for large diameter ball valve, butterfly valve.
  3. rotary Angle: double-acting = 90 °, single acting = 90 ° 15 mm from the Angle of adjustable on both ends
  4. working environment temperature: - 20 ° ~ 90 °.
  5. gas source: filtering, in dry or add lubricant clean air, morning small pressure o. 4 MPa, the atmospheric pressure of 1.0 MPa.
  6. basic design: pneumatic double cylinder double piston fork transmission mechanism. Type AW = double-acting; Model the AWS = single acting (spring reset).
  7. the attachment function: with a single (double) electric solenoid valves, limit switches < back - >, electrical locator, three air processing and manual operating mechanism, fully automatic or manual control.

Standard parameters

Basic design Pneumatic type double cylinder double piston fork transmission mechanism;
Model AWxx = double-acting;
Model AWxxS = single acting (spring reset).
Rotation angle Double-acting = 90 °;
Single acting = 90 °;
From the perspective of the adjustable on both ends - 50°C + 50°C
Working pressure -20°C—90°C.
Bleed pressure 0.4-0.7Mpa(Max1.0Mpa ).

For more details, please download the catalogue for reference or contact with us.
