G Series Scotch Yoke Pneumatic Actuator

G Series Scotch Yoke Pneumatic Actuator Product Type:A.symmetric Type :(1 ).single acting type( 2).Double Acting type. B.canted type:(1).single Acting Type (2).Double Acting Type. It applied in waste water treatment plants,power plants,refineries,mining and nuclear processes,and pipelines.
Enquiry
G Series Scotch Yoke Pneumatic Actuator
G series pneumatic actuator
rotary pneumatic actuator
high performance pneumatic actuator
big torque pneumatic actuator
G Series Scotch Yoke Pneumatic Actuator
G series pneumatic actuator
rotary pneumatic actuator
high performance pneumatic actuator
big torque pneumatic actuator

Specifications

Rotary Angle: 0° to 90 °

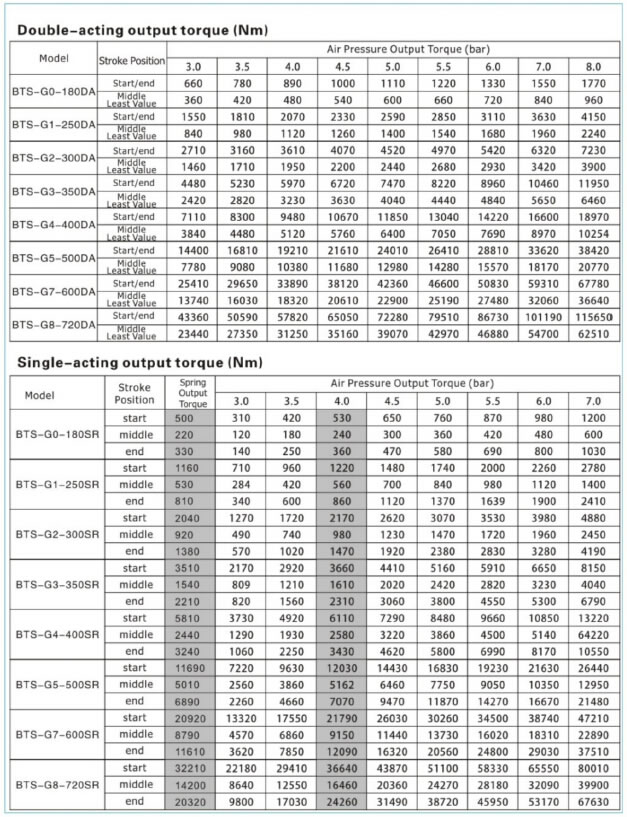

Output Torque:

  • Dual role of 1500-100000nm in lb(15000-15000)
  • Spring return in 600-200000nm in lb(5500-5500)

Pressure of Work:

  • Pneumatic 3-10 bar (40-145 PSIG)
  • Hydraulic 100 bar (maxinum)(100 PSIG)

Working Temperature:

  • Standard ST -20℃ to +80 ℃(NBR)
  • High Temperature HT -15℃ to +150℃(fluorine rubber)
  • Low Temperature LT: -40℃ to +150℃(fluorine rubber)

G Series Scotch Yoke Pneumatic Actuator

G Series Scotch Yoke Pneumatic Actuator

G Series Scotch Yoke Pneumatic Actuator

Wenzhou Topnotch Machine Co.,Ltd is a professional leader China G series rotary pneumatic actuator,G series pneumatic actuator,rotary pneumatic actuator,high performance pneumatic actuator,big torque pneumatic actuator,valve pneumatic actuator manufacturer with high quality and low price.Welcome to contact us!
