Pipe Fittings

Stainless Steel Tee

Tee is also called triplet,three way and "T" pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes, but 'reducing' tees are available as well. it means the one or two ends are different in dimension.Due to this dimension difference,cause the different capacity to control the volume when requried.
Contact Now
Stainless Steel Tee
Stainless Steel Tee
butt weld tee
stainless steel tee
pipes and fittings
stainless Steel Tee for pipe

Specifications:

  • Three female ports in a T shaped pipe tee.
  • Straight pipe tees which have the same size ports.
  • Reducing pipe tees have one port of different size and two ports of the same size.
  • Sanitary pipe tees which are used in food lines. These kind of pipe tees have a curved branch which is designed for a clean out plug. They are used to prevent obstruction of waste.
  • Cross pipe tee has four equal sized female ports.
  • Wing pipe tee has lugs to fasten the fitting to a wall or stud.
  • Compression pipe tee uses compression fittings on two or more ends.
  • Test pipe tee has a threaded port. This port is used in conjunction with a threaded plug for a clean-out port on a drain pipe.
Pattern Weld Seamless
Nominal size 1/2”-48” (DN15-DN1200) 1/2”-20” (DN15-DN500)
Wall thickness 2~100mm 2~50mm
Bend radius SCH5S-SCH160 ,XXS SCH5-SCH160
Type Tee/reducing tee Tee/reducing tee

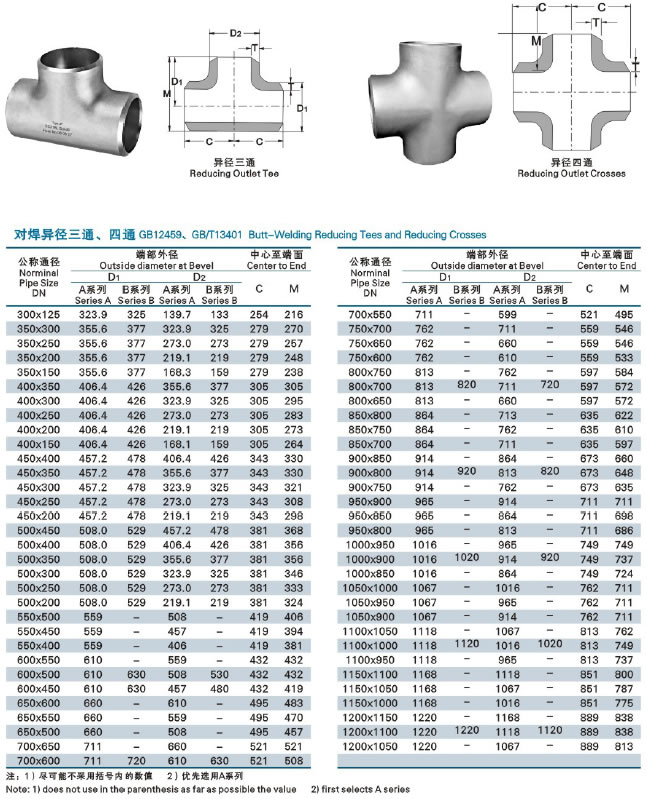

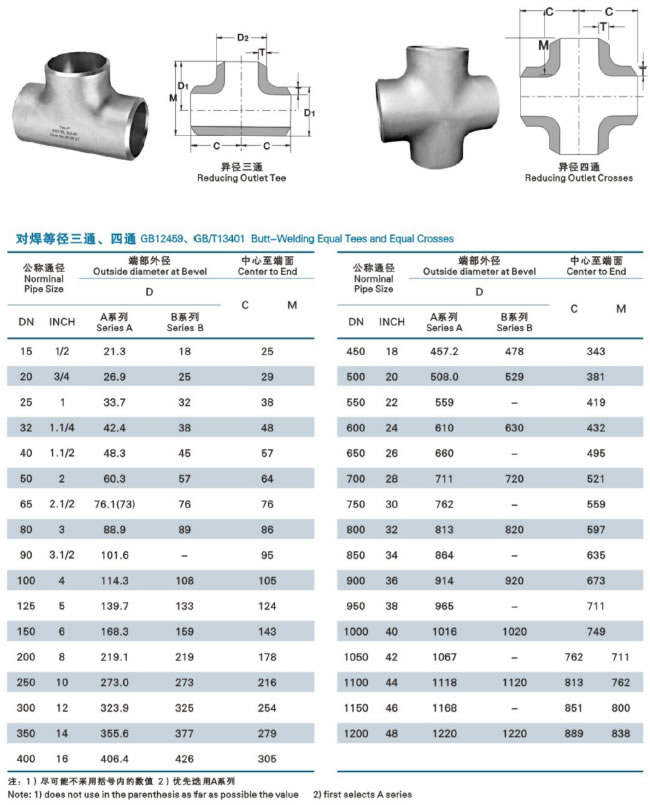

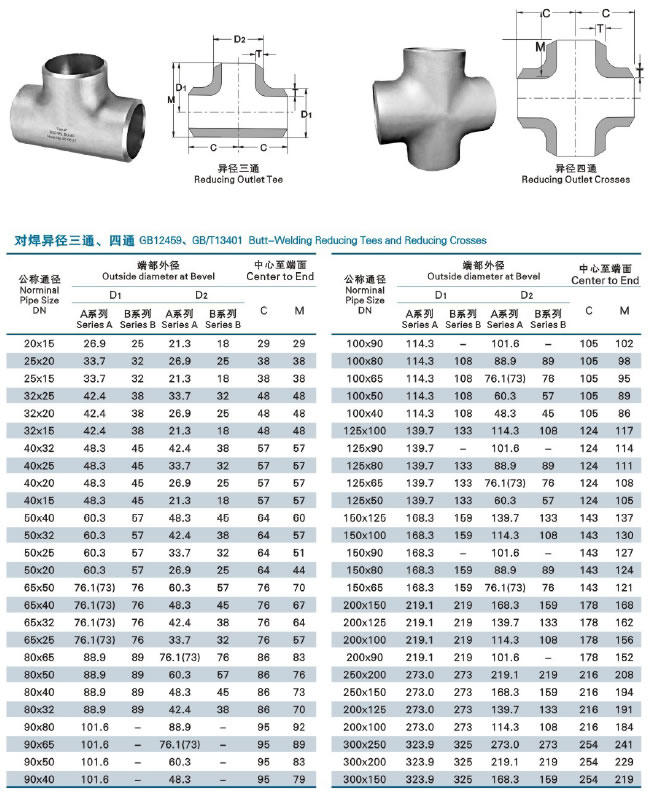

Tee dimenisons:

Wenzhou Topnotch Machine Co.,Ltd is a professional leader China Stainless Steel Tee,Butt weld SS Tee,BW Stainless Steel Tee,pipes and fittings,Stainless Steel Tee for pipe,Stainless Steel Reducing Tee manufacturer with high quality and low price.Welcome to contact us!
